उत्पत्ति के प्लेस:
गुआंगज़ौ, गुआंगडोंग, चीन
ब्रांड नाम:
JETEX-LLOYD'S
प्रमाणन:
ISO quality system certification,CRAA
मॉडल संख्या:
एएचई श्रृंखला

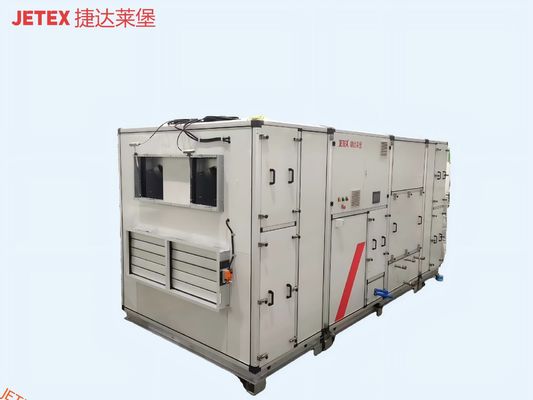

An air handling unit (AHU) with heat recovery is a core HVAC (Heating, Ventilation, and Air Conditioning) device that integrates heat recovery functionality into a standard air handling unit.
It's designed to transfer heat (or cold) between the building's exhaust air (polluted, with waste heat/cold) and incoming fresh air (outside air needing temperature adjustment) during ventilation. This process reuses the waste thermal energy, reducing the load on heating or cooling systems and cutting energy consumption.
| Item | Key Details |
|---|---|
| Core Function | Heat/cold transfer between exhaust air and fresh air; energy-saving ventilation |
| Heat Exchanger Type | Common: Plate heat exchanger, rotary heat exchanger (enthalpy wheel), run-around coil |
| Heat Recovery Efficiency | 60%-90% (varies by exchanger type; plate type: 60%-75%, rotary type: 75%-90%) |
| Air Volume Range | 500-100,000 m³/h (suitable for small offices to large industrial plants) |
| Operating Temperature | -20°C to 45°C (outdoor air temperature; low-temperature models available for cold regions) |
| Air Quality Guarantee | Independent air streams (no cross-contamination); optional filters (G3-H14 grade) |
| Control Features | Automatic temperature sensing, heat recovery switch, airflow regulation |
| Key Materials | Cabinet: Galvanized steel (anti-corrosion); Heat exchanger: Aluminum alloy/Stainless steel |
| Typical Energy Saving | 15%-40% reduction in HVAC operating energy consumption |
